Chimney Flue Parts & Accessories
At Stove Yard Cheshire, we’ve got everything you need to get your chimney setup sorted. From flue pipes and accessories to complete chimney kits, we cater to all kinds of homes and buildings, no matter the style or size. Plus, we offer a free flue design service to make things even easier—complete with detailed drawings and every component your installer will need for a seamless stove installation.
Ready to get started? Just click the link below, fill out our simple form with a few key measurements, and leave the rest to us. We’ll take care of designing the perfect flue system for you, at no extra cost.
Chimney Flue Parts & Accessories
At Stove Yard Cheshire, we’ve got everything you need to get your chimney setup sorted. From flue pipes and accessories to complete chimney kits, we cater to all kinds of homes and buildings, no matter the style or size. Plus, we offer a free flue design service to make things even easier—complete with detailed drawings and every component your installer will need for a seamless stove installation.
Ready to get started? Just click the link below, fill out our simple form with a few key measurements, and leave the rest to us. We’ll take care of designing the perfect flue system for you, at no extra cost.

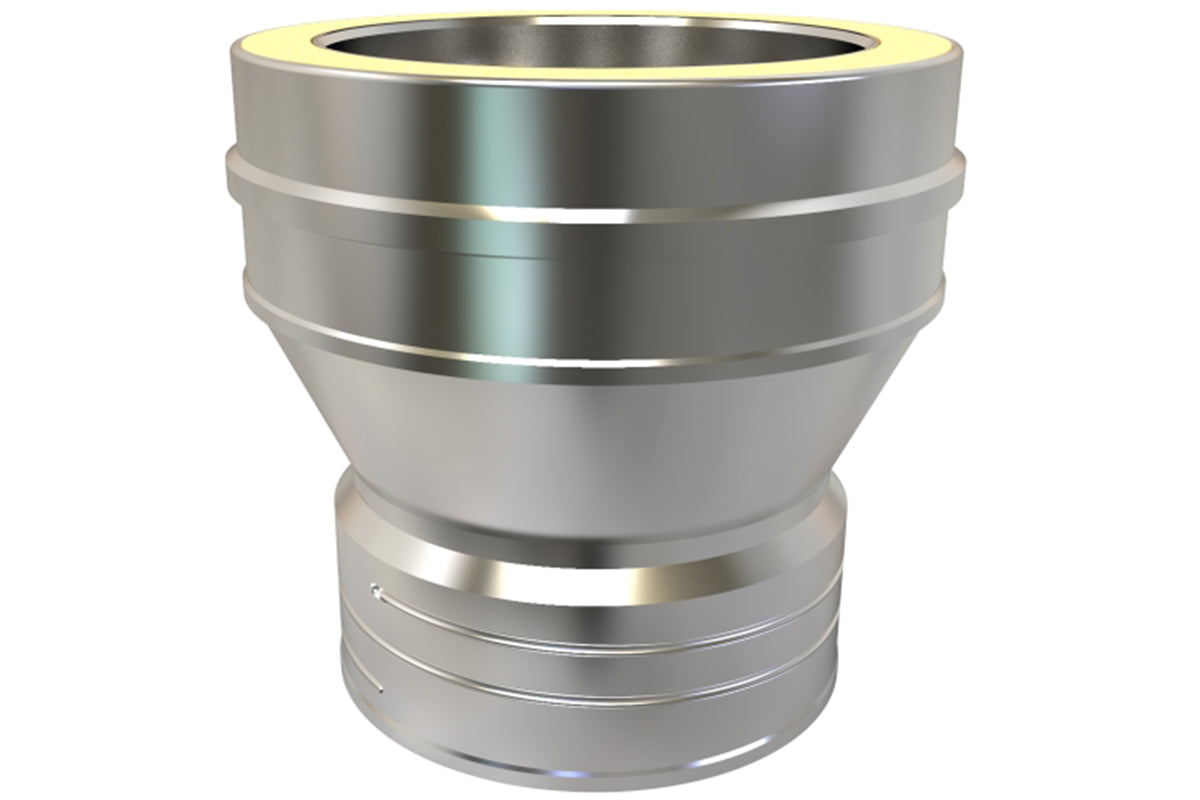

Transitional adaptor from MI-Flues multi fuel liner to TWPro . The adaptor has a screw fix coupling that screw onto the flexible flue liner. This transition must be made inside an existing class 1 Chimney. (no flex should be visible outside the brick or clay chimney.
APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler, gas boiler and any solid fuel appliances.
CONSTRUCTION
Outer skin is made from 304 stainless Steel and is 0.4mm thick. This is then coated in a high temperature Black finish. The Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m3. All parts are fully welded.
Distance to combustibles is 50mm.
APPROVALS
TWPro is HETAS Approved and is CE marked.
Designation Number is
EN1856-1 T600 N1 W V2 L50040 G50.
EN1856-1 T200 P1 W V2 L50040 O20.
INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band (supplied).
Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plaster board).
SKU | 2-125-101 |
Item | Flex to Twin Wall Adaptor - Ø 125 |
Designation: | EN1856-1 T600 N1 W V2 L50040 G50 |
EN1856-1 T200 P1 W V2 L50040 020 | |
System: | TWPro |
Inner Material: | 316L Stainless Steel - 0.40mm thick |
Outer Material: | 304 Stainless Steel - 0.40mm thick |
Fuels: | Wood, Oil, Gas, Low sulpher coal |
Approvals: | HETAS / CE |
Distance to Combustibles: | 50mm |
