    At Stove Yard Cheshire, we’ve got everything you need to get your chimney setup sorted. From flue pipes and accessories to complete chimney kits, we cater to all kinds of homes and buildings, no matter the style or size. Plus, we offer a free flue design service to make things even easier—complete with detailed drawings and every component your installer will need for a seamless stove installation.

    Ready to get started? Just click the link below, fill out our simple form with a few key measurements, and leave the rest to us. We’ll take care of designing the perfect flue system for you, at no extra cost.

  • TWPro 150mm Twin Wall Insulated Tee Cap Matt Black KW
  • WIKING Miro 4 with tile cover

     More payment options

    Wiking offer an extended 5-Year Guarantee on the basic construction of their wood burning stoves and this runs from the date of purchase. The basic construction includes metal parts, weldings, cast iron top plates and steel construction of the door (excluding glass, gaskets and hinges). Subject to Wiking's terms and conditions.

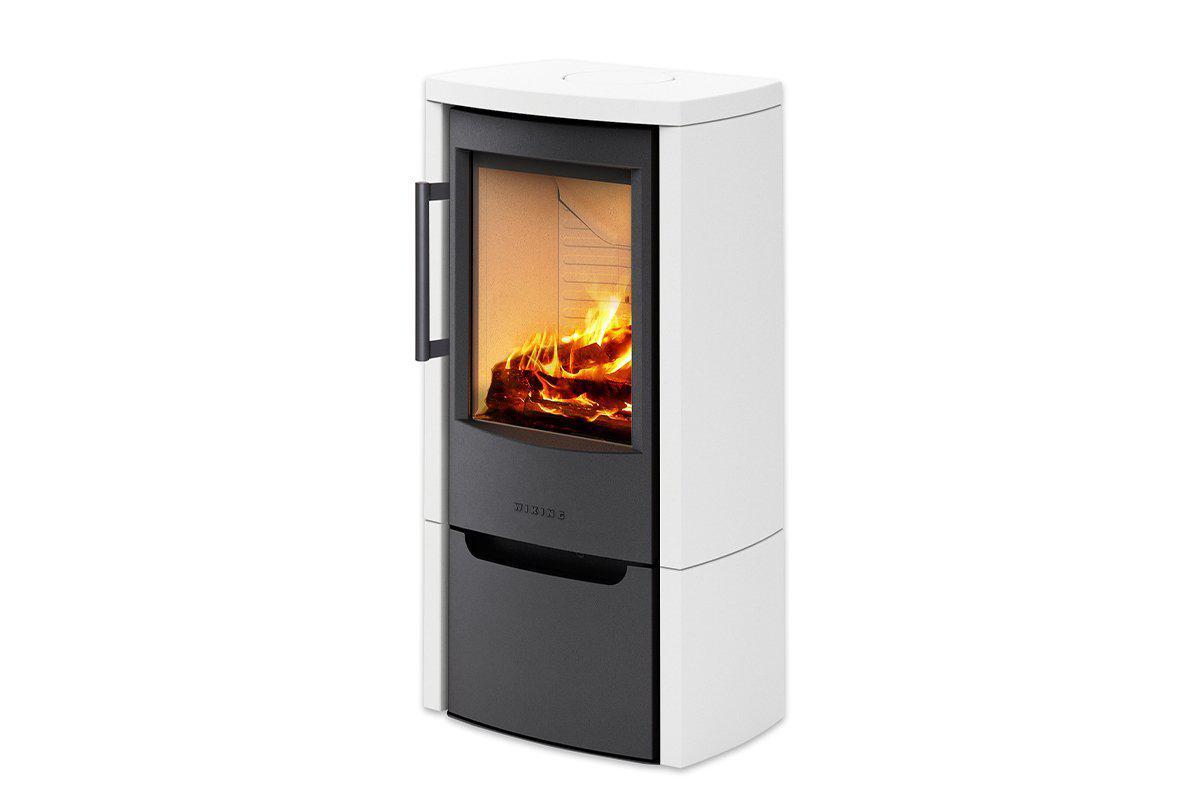

    WIKING MIRO 4 WITH TILE CLADDING AND LOWER DOOR Stove Key Facts


    Brand: Wiking
    Model

    WIKING MIRO 4 WITH TILE CLADDING AND LOWER DOOR

    Nominal Heat Output:    nominal 4.9kW
    Heat Output Range:   3.0kW to 8.0kW depending on fuel load
    Efficiency (Net):   Up to 78.0%
    ErP Energy Rating A
    Defra Smoke Exempt:   Yes
    Fuel:   Seasoned wood logs (less than 20% moisture content)
    Airwash:   Yes – top and left and right hand sides
    Air Controls:

    Wiking Automatic system plus secondary air control

    Construction: Cast iron door and fire chamber base with steel bodywork.  Natural soapstone cladding
    Flue Outlet:    Top or Rear (optional blanking plate required when using rear flue)
    Flue Diameter 150mm  / 6"
    Grate Type Flat bed with open / close centre grate and ash pan
    Guarantee:    5 Years
    Maximum Log Length 280mm / 11" approx
    Standard Colour

    Matt black

    Optional Finishes:   Grey
    Options:   Direct external air supply system (aka 'Fresh Air System')

    Top flue outlet blanking plate (when using rear flue)
    Net Weight:   130.0kg
    Recommended Log Length (mm):  275 (11") 275 (11")
    Air vent required:    Not usually in pre-2008 homes (Subject to Building Regs)
    Suitable for 12mm Hearth:   Yes
    Direct Air Inlet (DEAS):  Base or rear. 76mm dia (additional fresh air kit required)
    Overall Dimensions:  H1044  W545  D356
    Minimum Combustible Distances (mm):   Sides 310  Rear 100
